    Pre Engineered Metal Building Construction , Prefab Light Steel Structure Workshop

    Ask Lasest Price
    Brand Name : QZ RIDGE
    Model Number : RS-075
    Certification : CE,SGS
    Price : USD 24~66 square meters
    Payment Terms : Western Union, L/C, T/T, MoneyGram
    Supply Ability : 20000 square meters per month
    Delivery Time : 25-45days
    • Product Details
    • Company Profile

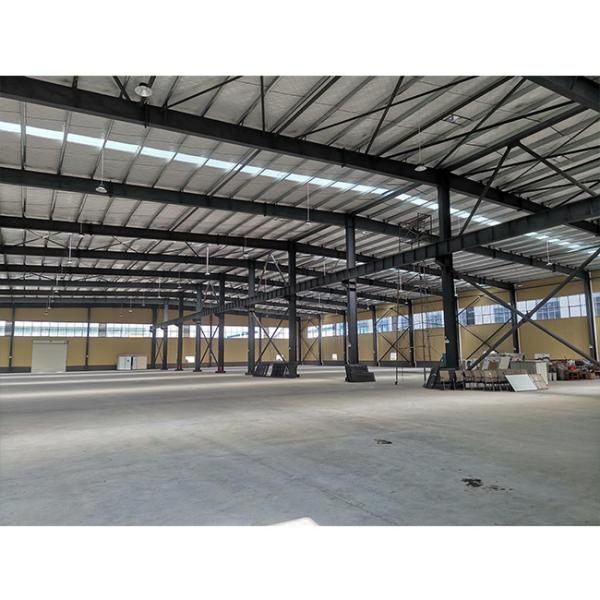

    Pre Engineered Metal Building Construction , Prefab Light Steel Structure Workshop

    Prefabricated Warehouse Workshop Light Prefab Steel Structure Material Pre Engineered Buildings Construction

    Project Description


    Structural steel is highly popular in the construction industry due to its shorter construction timelines and lower overall costs compared to traditional civil construction methods. The fabrication of steel structures is a complex process that demands specialized expertise, skills, and resources to ensure success. To produce high-quality structural steel beams, components, or equipment, a skilled metal fabricator follows a carefully planned and precise process.


    Main StructureH-section steelQ345 steel H beam, box column available
    WeldingAutomatic Submerged Arc Welding
    Rust removingShot blasting
    Surface processingtwice primer and twice finish Alkyd paint or hot dip galvanized
    High strength boltGrade 10.9
    SubstructureAngle braceL50*4, steel Q235, process and painting
    Cross bracingDia.20 round bar, steel Q235 process and pre-galvanized
    Tie barDia 89*3 round pipe, steel Q235 process and painting or pre-galvanized
    Batter braceDia. 12 round bar, steel Q235 process and pre-galvanized
    Ordinary boltGalvanized bolt
    RoofPurlinC channel or Z channel, steel Q235, galvanized
    Roof panel(50mm, 75mm, 100mm, 150mm) Sandwich panel , corrugated galvanized iron sheet
    Transparent skylight1.2mm FRP
    AccessoriesSealant, self-tapping screw
    Edge coverMade of color steel sheet
    GutterMade of steel sheet with thickness 0.8mm, or PVC
    RainspoutPVC pipe
    WallPurlinC channel or Z channel, steel Q235, galvanized
    Wall panel(50mm, 75mm, 100mm, 150mm) Sandwich panel , corrugated galvanized iron sheet
    AccessoriesSealant, self-tapping screw
    Edge coverMade of color steel sheet
    VentilatorUnpowered axial-flow ventilator or monitor roof
    Door & WindowElectric rolling door/sliding door, PVC/ Aluminum alloy window
    CraneRanging from 5 tons to 20 tons
    customized service and personalized design are welcomed!!

    Product Advantage

    1. Wide span: Single span or Multi-span

    2. Low cost: unit price range from USD50/m2 to USD80/m2 according to clients' request

    3. Long lifespan: about 20~ 50 years
    4. Fast construction and easy installation
    5. Others: environmental protection, stable structure, earthquake resistance,

    water proofing, and energy conservation.


    Why choose Quanzhou ridge steel structure company?

    High-Quality Raw Materials


    We maintain strict standards and a rigorous quality inspection process for raw material procurement. Every batch of materials comes with corresponding quality certificates and inspection reports to ensure compliance with both national and industry standards. This guarantees that only the best materials are used in our production.


    Advanced Production Equipment


    Our factory is equipped with state-of-the-art steel structure processing machinery. This advanced technology significantly enhances product quality, allowing our steel structures to achieve superior levels of strength, precision, and aesthetic appeal.


    Quality Certification and Testing


    We are proud to hold ISO9001 CE quality management system certification, reflecting our commitment to excellence. Every finished product undergoes comprehensive testing, including metal flaw detection, paint thickness measurement, and galvanizing thickness checks. These measures ensure the durability, reliability, and long service life of our steel structures, while also maintaining their visual appeal.


    Pre Engineered Metal Building Construction , Prefab Light Steel Structure Workshop


    Our design team brings over a decade of expertise to the table, utilizing advanced design software like Tekla, PKPM, AutoCAD, and SAP2000, along with the latest industry standards.


    This ensures not only the structural safety of your building but also the most efficient and optimized design solutions tailored to your specific needs.


    By doing so, we help you achieve your project goals while significantly reducing construction costs. Additionally, our factory operates at a high capacity, enabling large-scale production that minimizes material waste and further lowers expenses.


    This comprehensive approach ensures that your overall costs are kept to a minimum without compromising on quality.


    Pre Engineered Metal Building Construction , Prefab Light Steel Structure WorkshopPre Engineered Metal Building Construction , Prefab Light Steel Structure Workshop
