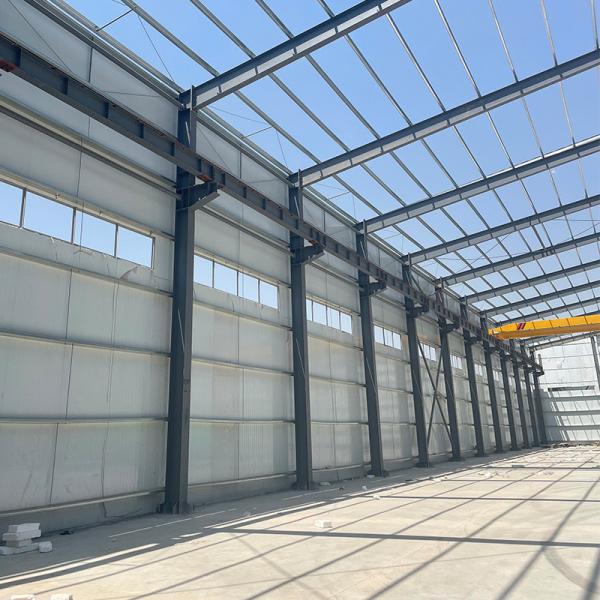

China Galvanized Prefabricated Factory Price Steel Structure for
Steel Frame Structure Industrial Warehouse Worskshop Building
Construction
Advantage:
1. Free design architectural drawings 2D & 3D;
2. Structure frame design use life more than 50years;
3. Wind against , snow resistance,earthquake resist design;
4. Multiple steel structure design guide: EN10902 Europe standard,
AS4100 Australia standard,AISC-360-05 American standard etc;
5. Clear span up to 60m;
6. High strength steel material S355JR,Q355B,GR50,AS3678-350;
7. Steel portal frame structure with H Beam and I beam;
8. Roof and wall cladding insulation & single skin both available;
9. Industrial gate ,entrance and windows included;
10. Bolt assemble without on-site welding;
11. Hot dip Galvanize and painted structure frame freely choose;
12. Delivery within 4~6 weeks;
13. Customized available;
14. World wide market experience since1998.
Product parameter
| Application: | steel structure, China steel structure , steel structure China
,steel warehouse, steel structure building, steel structure warehouse, steel
workshop, steel structure workshop,hangar, sport hall, steel hall,shopping mall, cow shed, chicken building etc |
| Clear span:(width) | 6~50m without middle column |
| Height | 2~20m |
| Length | as your requirement |
| Material Grade | Q345(S355JR)or Q235(S235JR) steel or as request |
| Column & Rafter | Welded or Hot rolled H beam |
| Tie beam | round pipe or square tube or as request |
| X brace | round steel bar, angle steel or as request |
| Purlin | C purlin, Z purlin,thickness 2.0mm,2.2mm,2.5mm,3.0mm |
| sag rod | steel round bar, angle, C purlin etc |
| Wall & Roof coverage | single corrugated steel sheet (0.12~1.2mm)
EPS, Rock wool, glass fiber ,PU core foam sandwich Panel
(Thickness:50mm,75mm,100mm,150mm,200mm) |
| Gate | Electric roller shutter door/Sliding door |
| Exit Door | Plastic steel/Aluminum alloy swing door/ steel swing door |
| Window | Plastic steel or Aluminum alloy frame
sliding window/ vent/top Hung window |
| Surface | Shot blasting with anti rust paint rich-zinc epoxy paint etc
hot dip galvanize |
| Certificate | ISO90001,CE EN1090 EXC2 ,IWE etc |
| Quality Control | The third party ,SGS, QIMA, BV all accept |
| Crane | 5MT, 10MT, 15MT, etc. |
| Other accessories | gutter, flashing trimming cover, down spout, ventilation fitting,
skylight belt, bolt, anchor bolt, self tapping screw etc |
| Package | main steel frame etc load in 40'OT,roof and wall panel load in 40'HQ! |
Company Introductions
Quanzhou Ridge Steel Structure Co., Ltd. is one professional
prefabricated steel structure Supplier in Fujian, China. We provide
one stop solutions including: design, fabrication, erection and
after-sales service of Pre-Engineered Building Steel Structure
(PEBS). With experienced designer, senior engineer, detailing
technician, production manager, strict quality inspector,
well-trained welder in main plant and branch plants, a capacity of
50,000 Metric Tons of PEBS is being produced annually. Numerous
high-quality projects have been completed both home and abroad.
RIDGE Steel is also recommended by designers and consultants as
trustworthy partner in fabrication for steel structure contractors.
We have export abroad China more than 15 years ,the steel structure
can be design below standard:
1.Europe standard:
EN1090 EXC2 -CE approved
---already to Swiden,Demark, Germany, France, Bulgaria,Romania,...
2.Africa Standard:
EN1090 BS5950-2 GB etc- CE BV SGS approved
---already to Mauritania, Senegal, Côte d'Ivoire, Ghana, Zimbabwe,
Tanzania, Uganda, Rwanda, Angola, Kenya, Ghana, Mozambique, Zambia,
South Africa, Malawi...
3.South east Asia:
BS5950-2 GB etc- BV SGS approved-
--already to Myanmar, Vietnam, Malaysia, Brunei, Philippines,
Cambodia, etc.
4.Australia Standard:
AS-4100-1998- SGS approved-
--already to Austalia--Melbourne, Sydney, Adelaide, Queensland ,New
Zeland
5.America:
AISC 360-16 EN1090 BS5950-2 GB etc- BV SGS approved-
--already to United States, Mexico, Dominica, Paraguay, Colombia,
Chile, Brazil, Argentina...
How to order a prefabircated steel structure building from us?
1.Project location?
2.What will be your building usage?
3. Load of your building:(if you really do not know, we will design
according experience from the client your place ) Wind speed(KM/H)
/ Snow load (KG/M2) if have / Earthquake load if have
4..Size: Width x Length x Eave height ? (Accept internal column or
not if your building more than 30m width)
5..Roof and wall coverage material?
6.Any window and door ?
7.Surface treatment : Paint or hot dip galvanize
8.Any mezzanine? Any crane? or Other special demand?
