Prefab Steel Warehouse Steel Frame Building High Quality Modern
Prefab Steel Structure Warehouse Factory
steel structure product parameter
The steel structure warehouse building designed by RIDGE Steel
provides customers with ideal storage and cargo management
solutions.
With the steel structure warehouse building, customers can choose
from a variety of structures, ranging from simple two-bay
warehouses to large industrial and commercial buildings. The steel
frame of this prefab warehouse is unique in that it can be built
within a short period of time without any trouble involved.
Furthermore, this kind of storage center benefits from extremely
low maintenance costs and can withstand even harsh weather
conditions.

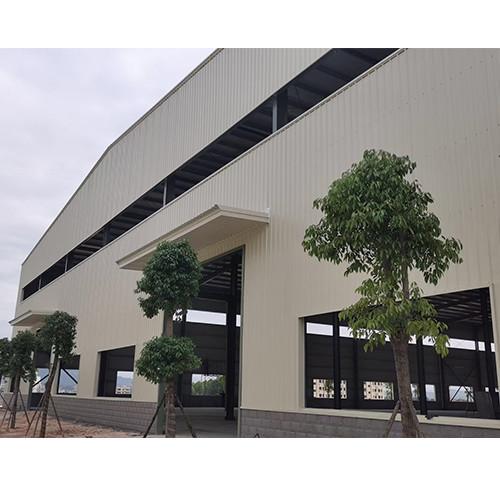

Steel structure warehouse building is structural frames made of
primary steel columns, beam, and secondary structure, which can be
used as enclosures to accommodate electrical and plumbing
facilities. One main concept of steel structure warehouse buildings
is that they use a wide span, so a single bay space can be divided
into multiple small rooms without having an outer column for
support. That advantage will save the construction cost, which is
especially suitable for large warehouses and huge factories since
it takes up less land than traditional construction methods.
Building Purpose
we will recommend the best design for the building
A. Warehouse/Storage
B. Factory
C. Agriculture Barn
D. Retail Store
E. Repair/Mechanic Shop
F. Office Space
G. Medical Warehouse
Main Structure | Including Column & Beam, Made of welded H section Steel, Steel
Grade Q355B/Q235B |
Column & Beam Connection: High Strength Bolt |
Column & Foundation Connection: Pre-embedded Anchor Bolt |
Secondary Structure | Roof Purlin & Wall Purlin: C-shape or Z-shape Steel |
Knee Brace: Angle Steel |
Brace: Steel Rod |
Tie Bar: Steel Pipe |
Types of wall panels and roof panels | Applicable Regions and Scenarios |
Color Steel Sheet | Areas without winter, preferred for processing workshops and
warehouses |
Color Steel Sheet & Fiberglass Roll Insulation | Areas with winter but with low requirements of temperature ,
preferred for warehouses and workshops |
Insulated Sandwich Panel | Workshops and warehouses with temperature requirements |
PU Insulated Sandwich Panel | Workshops, warehouses and public facilities with high requirements
of temperature for the working environment |
Quanzhou Ridge Steel Structure Company Design Case
Quanzhou Ridge Steel Structure Company Complete Projects
American warehouse 19x15m
Three 4.5m x 4.8m rolling shutter doors on one side of 19m, one
small door on the corner side of 15m, snow thickness 250mm, wind
speed 30km/h, region: Tacoma, USA
Company Introduction
Quanzhou Ridge Steel Structure Co., Ltd was founded in Fujian
china, and is a professional manufacturer of steel structures with
20 years of exporting experience, finished 1820 projects, totaling
7,600,000 square meters. We have 2 modern factories with a total
area of 21,000 m², 20,000 tons annual produced capacity.
RIDGE Using high-quality steel raw materials, 3D model solutions
are customized for clients. The products are sold to many overseas
countries, and engineers provide online guidance for installation.
Believe in Ridge, believe in quality, win-win cooperation!
Advance:
Feature and application of the standard type of steel building
structure:
1. Portal frame structure has simple force, clear force
transmission path, and fast construction speed. It is widely used
in industrial and civil buildings such as industrial, commercial,
cultural, and entertainment public facilities.
2. Steel building frame structures are flexible and can form a
larger space. It is widely used in the multi-story and high-rise
building such as commercial office building, shopping mall,
conference center and other buildings.
3. Steel truss structure is using small cross-section tube to form
larger cross-section components, which are often used in
industrial and civil buildings such as large span roof, bridge,
tower, marine oil production platform, etc., with large span or
height in the building.
4. The steel grid structure is a high-order statically
indeterminate space structure composed of many rods according to
certain rules with small space stress, lightweight, high rigidity,
and excellent seismic resistance. It can be used as a gymnasium,
exhibition hall, petrol station and hangars, etc.
FAQ
1. What kind of customer service do you provide?
We offer comprehensive customer service, including basic
design,supporting facilities procurement, and the option to
dispatch installation guidance.
2. How about the customer reviews of your company?
We are proud to have received consistently high five-star reviews
from our customers, which stand as a testament to our commitment to
quality and service.
3. What is your quality inspection process like?
Our strict quality inspection process ensures that every product
meets the highest standards of excellence. From raw materials to
finished goods, each stage is meticulously inspected to guarantee
superior quality.
4. Can you send engineers or a whole team to install my project?
We will give detailed installation drawings for free. We can send
engineers as an installation director or a team upon request.
5. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container
loading, but any time during the production time.
