Customized Industrial Prefabricated Steel Structure Metal Building
Light Type Standard Constructing Warehouses Workshop
steel structure product parameter

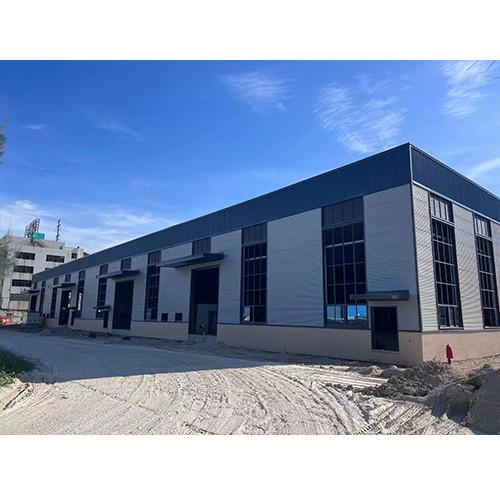

The steel structure warehouse building designed by RIDGE Steel
provides customers with ideal storage and cargo management
solutions.
With the steel structure warehouse building, customers can choose
from a variety of structures, ranging from simple two-bay
warehouses to large industrial and commercial buildings. The steel
frame of this prefab warehouse is unique in that it can be built
within a short period of time without any trouble involved.
Furthermore, this kind of storage center benefits from extremely
low maintenance costs and can withstand even harsh weather
conditions.
Steel structure warehouse building is structural frames made of
primary steel columns, beam, and secondary structure, which can be
used as enclosures to accommodate electrical and plumbing
facilities. One main concept of steel structure warehouse buildings
is that they use a wide span, so a single bay space can be divided
into multiple small rooms without having an outer column for
support. That advantage will save the construction cost, which is
especially suitable for large warehouses and huge factories since
it takes up less land than traditional construction methods.
Building Purpose
we will recommend the best design for the building
A. Warehouse/Storage
B. Factory
C. Agriculture Barn
D. Retail Store
E. Repair/Mechanic Shop
F. Office Space
G. Medical Warehouse
| | |
| Column | Q235, Q345 Welded H Section Steel |
Beam | Q235, Q345 Welded H Section Steel |
Secondary Frame | Purlin | Q235 C and Z purlin |
Knee brace | Q235 Angle Steel |
Tie rod | Q235 Circular Steel Pipe |
Brace | Q235 Round Bar |
Vertical&Horizontal support | Q235 Angle Steel, Round Bar or Steel Pipe |
Cladding system | Roof panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel / |
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
Wall panel | same with the roof panel |
Accessories | Window | Aluminium Alloy Window / PVC Window |
Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door |
Rainspout | PVC |
Live load on Roof | In 50kg/Sqm (Color steel panel surrounded) |
Wind Resistance Grade | according to local climate |
Earthquake-resistance | 8 Grades |
Structure Usage | Up to 50 years |
Finishing Options | The vast array of colors and types available |
Paint Options | Alkyd painting, two primary paintings, two finished paintings |
(gray paint, red paint, white paint, epoxy zinc, etc.) Or
Galvanized. |
Quanzhou Ridge Steel Structure Company Design Case
Quanzhou Ridge Steel Structure Company Complete Projects
American warehouse 19x15m
Three 4.5m x 4.8m rolling shutter doors on one side of 19m, one
small door on the corner side of 15m, snow thickness 250mm, wind
speed 30km/h, region: Tacoma, USA
Company Introduction
Quanzhou Ridge Steel Structure Co., Ltd was founded in Fujian
china, and is a professional manufacturer of steel structures with
20 years of exporting experience, finished 1820 projects, totaling
7,600,000 square meters. We have 2 modern factories with a total
area of 21,000 m², 20,000 tons annual produced capacity.
RIDGE Using high-quality steel raw materials, 3D model solutions
are customized for clients. The products are sold to many overseas
countries, and engineers provide online guidance for installation.
Believe in Ridge, believe in quality, win-win cooperation!
Advance:
Feature and application of the standard type of steel building
structure:
1.Portal frame structure has simple force, clear force transmission
path, and fast construction speed. It is widely used
in industrial and civil buildings such as industrial, commercial,
cultural, and entertainment public facilities.
2.Steel building frame structures are flexible and can form a
larger space. It is widely used in the multi-story and high-rise
building such as commercial office building, shopping mall,
conference center and other buildings.
3.Steel truss structure is using small cross-section tube to form
larger cross-section components, which are often used in
industrial and civil buildings such as large span roof, bridge,
tower, marine oil production platform, etc., with large span or
height in the building.
4.The steel grid structure is a high-order statically indeterminate
space structure composed of many rods according to certain rules
with small space stress, lightweight, high rigidity, and excellent
seismic resistance. It can be used as a gymnasium, exhibition hall,
petrol station and hangars, etc.
FAQ
Q1: Is your company a factory or trade company?
We are factory, so you can get the best price and competitive
price.
Q2: What are your main products?
A: Our main products have steel structures, warehouses, workshops,
prefab houses, container houses, steel poultry sheds, steel car
garage,steel aircraft hangar,light steel villa,sandwich panel and
other construction materials.
Q3: What’s the quality assurance you provided and how do you
control quality ?
Established a procedure to check products at all stages of the
manufacturing process - raw materials, in process
materials,validated or tested materials, finished goods, etc.
Q4: Do you offer guiding installation on site overseas for
warehouse building?
Yes, we can provide the service of installation, supervision and
training by extra. We can send our professional technical
engineer to supervise installation on site overseas.
Q5: What should the client provide before you offer a complete
quotation?
A: When we receive inquiry from client, please fill purchasing
intention sheet, providing us with information of warehouse
dimensions, draft drawing, layout and materials for prefabricated
house. We will design the drawings and offer competitive quotation
with the above information.
