Prefabricated Light Steel Frame House,welded up Portal Steel Frame
Buildings
STEEL STRUCTURE WAREHOUSE PARAMETER
Specification |
Items | Specification |
Main Steel Frame | Column | Q235, Q355 Welded H Section Steel |
Beam | Q235, Q355 Welded H Section Steel |
Secondary Frame | Purlin | Q235 C and Z purlin |
Knee brace | Q235 Angle Steel |
Tie Rod | Q235 Circular Steel Pipe |
Brace | Q235 Round Bar |
Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe |
Maintenance system | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
Wall Panel | Sandwich Panel / Corrugated Steel Sheet |
Accessories | Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window |
Door | Sliding Sandwich Panel Door / Rolling Metal Door |
Rainspout | PVC |
Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) |
Wind Resistance Grade | 12 Grades |
Earthquake-resistance | 8 Grades |
Structure Usage | Up to 50 years |
Finishing Options | Vast array of colors and textures available |
Paint Options | Alkyd paiting, two primary painting, two finish painting
(Primer ,Medium paint ,top coat, epoxy zinc etc.) Or Galvanized. |
Advantage
(1) We design architectural drawings for you free of charge.
(2). Features: Quick and flexible assembly, safety, heat insulation
and sound insulation, waterproof and fireproof;
(3) High cost performance: Quick and convenient installation,
significantly shortening the construction time and reducing costs;
(4) Durability: The entire structure is easy to maintain and can be
used for over 50 years.
(5). Perfect design: A perfect design completely avoids water
leakage and seepage. Meanwhile, this is also in line with the
national fire protection level.
(6). Load-bearing capacity: It can withstand strong wind impact and
seismic performance, and bear heavy snow loads
EMAIL: luke_lyu@qq.com Whatsapp+86 15985955610
Connect us to get quotation!!!
Quanzhou Ridge Steel Structure Company Complete Projects
| usage | warehouse |
| project location | mexico |
| length | 74 meter |
| width | 50 meter |
| height | 9 meter |
| crane | 5 tons single girder crane |
| weather | wind speed 150km/h |
| clading system | Color-coated steel sheet |
Process of Procuring Prefabricated Steel Structure Components from
China
1. Design
Chinese suppliers design steel component drawings and calculate
weights based on the load-bearing requirements and climatic
conditions provided by the client. This ensures the components meet
load-bearing and safety standards. Precise 3D models are created
using design software such as Tekla, AutoCAD, or Revit.
2. Material Procurement
After the client confirms the order, high-quality steel materials
are procured.
3. Production and Fabrication
Steel cutting: Steel materials are cut to the required dimensions.
Drilling: Holes are drilled into steel components as per design
specifications.
Welding: Steel columns and beams are welded together.
Surface treatment: Sandblasting is used to clean the steel
surfaces, removing rust, scale, and impurities. Anti-corrosive
primers and protective coatings are applied, or galvanization is
performed to enhance durability and corrosion resistance.
4. Quality Inspection
All components are checked to ensure they meet specified dimensions
and tolerances.
Critical components are tested for strength and load-bearing
capacity.
Inspection results are documented, and certifications (e.g., ISO,
AISC) are provided to confirm compliance with standards.
5. Packaging and Transportation
Labeling: Each component is marked with identification numbers for
easy on-site assembly.
Packaging: Components are protected during transit using wraps,
crates, or pallets.
Shipping: Components are transported via sea freight and delivered
to the client.
6. On-Site Assembly
Based on the installation drawings provided by the Chinese
supplier, local construction teams carry out the assembly.
Alternatively, the supplier may send technical personnel to guide
the installation process.
EMAIL: luke_lyu@qq.com Whatsapp+86 15985955610
Connect us to get quotation!!!

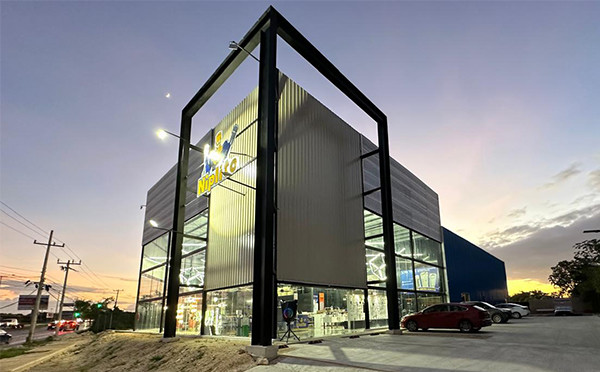

QUANZHOU RIDGE STEEL STRUCTURE COMPANY FINISHED PROJECTS
